DLE Engines DLE-170 170cc Twin Gas Engine with Electronic Ignition and Mufflers

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Packed with power!

    Enjoy plentiful power on demand with the DLE Engines DLE-170cc Twin Gas Engine! Includes advanced CNC machining, an Electronic Ignition Unit, twin mufflers, a customized carburetor and more.
    • Special, bearing-equipped aluminum alloy crankcase.
    • Advanced CNC machining.
    • Horizontally-opposed twin cylinders reduce vibration.
    • Simple design allows for a high power-to-weight ratio.
    • Automatic electronic ignition.
    • Double V-type reed valves, bottom-induction design.
    • Includes mount, spark plugs, gaskets, bolts, machined aluminum standoffs, a throttle arm extension and mounting template.

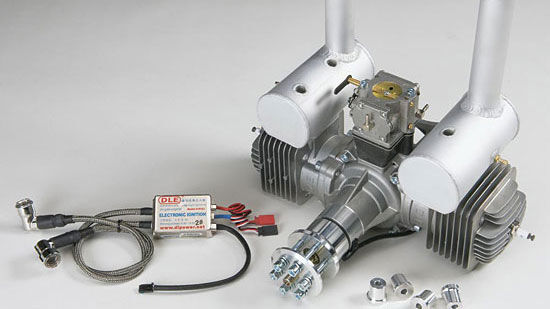

    DLE Engines DLE-170cc Twin Gas Engine - Includes
    Like all DLE engines, the DLE-170 cc is loaded with "extras" which add value instead of cost. The DLE-170 package includes mufflers, spark plugs, a throttle arm extension and a mounting template.

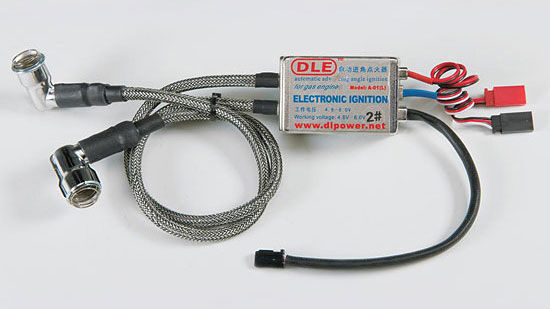

    DLE Engines DLE-170cc Twin Gas Engine - Electronic Ignition
    The included Electronic Ignition Unit provides simpler starts, higher performance and reduced noise.
    • Horizontally opposed twin cylinders for low vibration operation
    • Special aluminum alloy crankcase
    • Electronic ignition for simpler starts, higher performance and minimal RF noise **Ignition Sensor available separately**
    • Sealed ball bearings
    • Double V-type reed valves, bottom induction

    Product Specs

    Bore
    2.06" (52mm)
    Crankshaft Type
    Threaded
    Cylinders
    Twin
    Displacement
    10.37 cu in (170 cc)
    Engine (Only) Weight
    7.83lbs (3,550g)
    Ignition Weight
    5.64 oz (160g)
    Muffler Type
    2-piece aluminum
    Muffler Weight
    7.05 oz (200g) combined weight
    Oil Type & Content
    30:1 2-cycle oil mixture
    Plug Type
    NGK CM6
    Power Type
    Gas
    Product Height
    4.9" (124mm) from center of crankshaft to top of carburetor
    Product Length
    9.1" (232mm) from standoff to front of prop hub
    Product Width
    11.3" (288mm)
    Prop Range
    30 x 12 or 32 x 10
    Starter Type
    Hand Held Starter
    Stroke
    1.19" (30mm)
    Total Weight
    9.1 lbs (4132 g)
